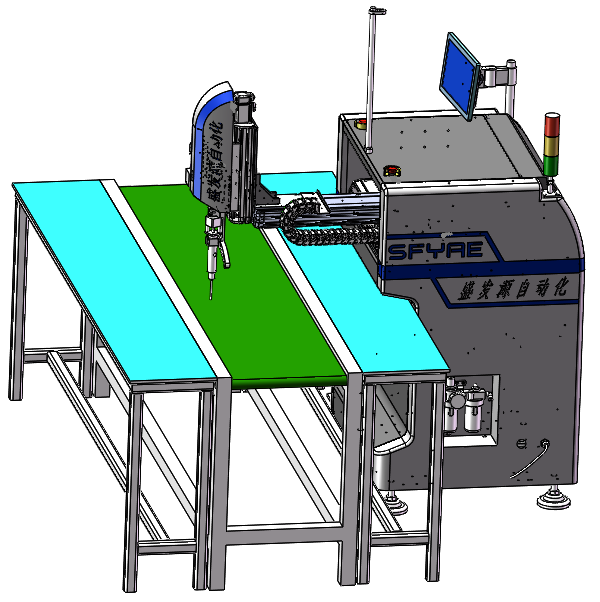

Visual Online Automatic Follow Dynamic Glue Dispensing Machine - Parameter Model SFYAE-DJ8 Z-axis Maximum Load 10KG X/Y/Z-axis Repetitive Accuracy ± 0.2mm Axis Count 4 Axes/Independent Control CCD Vision 1 Set Transmission Method Precision Screw+Precision Slide Drive Method Servo Motor Control Method Industrial Computer+Display Working Environment Temperature -20 ° C - ---+25 ° C Input Power AC220V 50-60HZ Total Power 1500W Working Range X/Y/Z/750 * 450 * 100mm External Dimensions 1100mm * 750+(610) mm * 1220mm Machine Weight 550KG Maximum Speed 1m/s Glue Barrel Capacity Original Packaging 2600ml Glue Frequency 1 time/second Glue Valve Configuration Flexibility According to Glue Characteristics 4-axis Independent Control/Needle Independent Rotation Tilt

Introduction to machine features:

1. No need for any fixtures or jigs.

2. No need for dedicated personnel to be on duty, and there is no need for manual supervision after changing the product and adjusting the program.

3. The product can be placed in the same direction freely, with visual automatic positioning, tracking, and dispensing.

4. Strong scalability, adhesive/three proof paint coating.

5. Having the ability to draw points, straight lines, continuous lines, arcs, and circles.

6. Utilize the customer's existing belt cable.

7. It can seamlessly connect with the assembly belt without changing the production line structure or facilities and equipment.

Applicable product scope:

Various power boards, control boards, phone cases, laptop cases, tablet cases, audio speakers, navigation devices, switches, relays, transformers, inductors, heat sinks, semiconductors and other electronic products, clocks, toys, 5G communication products, medical equipment, etc. require liquid dispensing/coating processes.

Applicable fluid adhesive range: can be applied to silicone, yellow adhesive, black adhesive, white adhesive, and solder mask.
